The Toyota 1MZ-FE makes most sense as a smooth, usable 3.0-liter V6 with an established service history. A cheap engine with unknown oil changes, an overdue timing belt and missing donor electronics can be a much worse purchase than a more expensive, complete example.
That distinction matters now that these engines are decades old. The question is less “Are Toyota V6s reliable?” and more “Which version is this, what has been maintained, and what will it cost to make this particular engine dependable?”
Here is how to identify the important differences, assess the mechanical risks and decide whether a 1MZ-FE is right for your car or project.
1MZ-FE Specifications: The Details That Stay the Same
The core design is a naturally aspirated, 24-valve, double-overhead-cam V6 using port fuel injection and a timing belt. Toyota’s 1997 Camry owner’s manual specifies 2,995 cc and an 87.5 × 83.0 mm bore and stroke.
| Item | 1MZ-FE |
|---|---|
| Displacement | 2,995 cc / 3.0 liters |
| Layout | V6, DOHC, four valves per cylinder |
| Fuel delivery | Port injection; naturally aspirated in standard applications |
| Camshaft timing drive | Timing belt, not a timing chain |
| Variable valve timing | Version-dependent; both non-VVT-i and VVT-i applications exist |
| Output, fuel and service specifications | Use the vehicle, model year and market specification; the engine code alone is insufficient |
Be cautious with a single horsepower number attached to every 1MZ. Toyota’s 2001 UK Camry launch specification lists 184 bhp and 273 Nm for its 3.0-liter V6. The 2004 Canadian Camry specification lists a VVT-i 1MZ-FE at 210 hp and 220 lb-ft. These are specific market/year examples, not interchangeable ratings or a promised tuning gain.
VVT-i Versus Non-VVT-i: Buy the Complete Combination
VVT-i changes intake-cam timing, but the practical ownership issue is compatibility. A later long block is not automatically a plug-in replacement for an earlier engine. Intake hardware, throttle control, sensors, wiring, ECU, immobilizer equipment and emissions components need checking against both vehicles.

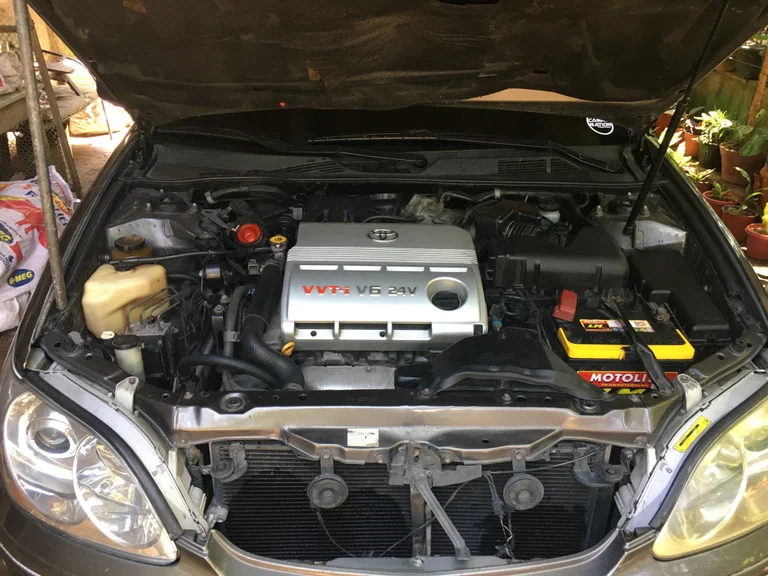

An engine cover is a clue, not proof. Covers can be swapped. Record the donor VIN, engine identification, ECU part number and wiring-harness details. Compare the actual connectors and service information before paying for a replacement.
Camry is a familiar application, but the engine also appears in other Toyota/Lexus vehicles. Toyota’s own 2000 Estima history entry identifies a 3.0-liter 1MZ-FE option. Application is not the same as interchangeability: a van donor may still require different installation parts from a sedan donor.
The Timing Belt Is the First Maintenance Question
Ask for an invoice showing the date, mileage and parts used, rather than accepting “the belt looks good.” A timing-belt job is scheduled maintenance, and an old low-mileage car can be due on elapsed time.
As a documented example, Toyota’s 2005 maintenance log specifies replacement at 90,000 miles or 108 months for the Camry with a 1MZ-FE. Confirm the interval in the guide for your exact car; do not apply that example indiscriminately to every Lexus, market or production year.
When getting an estimate, ask what is included: belt, tensioning/idler components, inspection of the water pump and any oil leaks behind the covers, correct coolant and labor. Having access during a belt service can make related work sensible, but “replace everything” is not a diagnosis. Separate required repairs from preventive options on the quote.
Do not treat internet claims about every 1MZ being harmless if the belt breaks as permission to delay service. Toyota’s timing-belt advice warns that belt failure can cause severe damage. Follow the application-specific instructions and timing procedure.
Oil Sludge: Investigate the History, Not Just the Filler Cap
Oil gelling is a documented part of this engine family’s history. A Toyota owner letter retained by the Center for Auto Safety discussed sludge, oil consumption and blue exhaust smoke. That historical letter does not establish that a particular engine is affected, and it is not evidence of a current warranty entitlement.
For a buyer, service records are more useful than a blanket verdict on the engine code. Look for regular dated oil/filter changes, an explanation for any oil-consumption complaints and evidence that low oil pressure or overheating was investigated properly.
Looking through the filler opening only shows a small part of the engine. A clean visible surface does not prove the oil pickup and the rest of the engine are clean. If deposits, warning lights or suspicious noises justify concern, have a specialist decide whether valve-cover inspection, oil-pressure testing or further investigation is needed. Aggressive chemical flushing is not a substitute for diagnosis.
Leaks, Cooling and Drivability: Separate the Symptom From the Cause
Age-related repairs can determine the purchase decision even when the internal engine is healthy. Use this checklist to direct an inspection, not to diagnose every 1MZ by reputation.
- Oil around the cylinder-head covers or plug wells: locate the leak and check its effect on ignition components. A wet engine deserves a written repair estimate, not an assumption that all gaskets need replacing.
- Coolant loss or overheating: inspect hoses, radiator, pump area and cooling-fan operation. Repeated topping-up without finding the leak is a warning sign. Never open a hot pressurized cooling system.
- Misfire or rough idle: read fault codes and live data before buying coils, injectors or sensors. Ignition faults, air leaks, compression problems and wiring faults can produce overlapping symptoms.
- Knock-sensor or VVT-related codes: check the circuit and application-specific test procedure. A code naming a sensor does not prove that the sensor itself is defective.
- Smoke, abnormal noise or warning lights: arrange a cold start and a fully warm inspection. Avoid a seller who only allows a brief already-warm demonstration.
For an engine sold separately, ask what test results were taken before removal, how it was stored and what the written warranty excludes. A compression figure without test conditions or cylinder-by-cylinder results is not much of a health report.
1MZ-FE Versus 3MZ-FE: Do Not Buy by Appearance
The 3MZ-FE is the related 3.3-liter engine, not simply another name for a 1MZ with VVT-i. Toyota’s 2004 Canadian Camry sheet lists both the 3.0-liter 1MZ and 3.3-liter 3MZ in the same model range. “It came from a Camry” therefore does not identify the engine.
For a repair, start with the original application and matching part numbers. For a swap, price the complete system: engine, compatible transmission, mounts, sump clearance, exhaust, cooling, wiring, controls and legal approval. A low engine-only asking price can hide a costly incomplete conversion.
Is the 1MZ-FE Worth Modifying or Swapping?
A naturally aspirated 1MZ can suit a project that values packaging, usable torque and a complete affordable donor. It is less convincing if the plan assumes cheap bolt-ons will deliver a specific large power increase. We have not dyno-tested a modification package here, so there is no claimed “safe horsepower” figure.
Before buying a supercharger, turbo kit or ECU, confirm current parts availability and support for your exact version. Budget fuel delivery, calibration, cooling, transmission condition and emissions compliance together. A stock engine with uncertain health is a poor foundation for boost.
For an MR2 or another custom installation, find a proven conversion plan for the exact chassis and donor combination. Treat forum builds as project examples, not approval that your mounts, brakes, wiring or emissions setup will be suitable. Check local inspection requirements and tell your insurer about the conversion before road use.
A Sensible Buying Order
- Identify it. Obtain donor details, engine version and the included electronics/accessories.
- Check history. Establish oil servicing, timing-belt date and any overheating or consumption issues.
- Inspect condition. Get a cold/warm assessment and targeted tests where symptoms warrant them.
- Price the whole job. Include overdue maintenance, leaks, installation parts and the transmission.
- Decide on evidence. Pay more for a documented complete example if it reduces uncertainty; walk away when the seller cannot answer basic questions.
The 1MZ-FE can still be a practical engine to own. Its Toyota badge does not cancel decades of use, and a tidy cover does not replace records. The best example is the one whose version, condition and total installation cost you can actually establish.

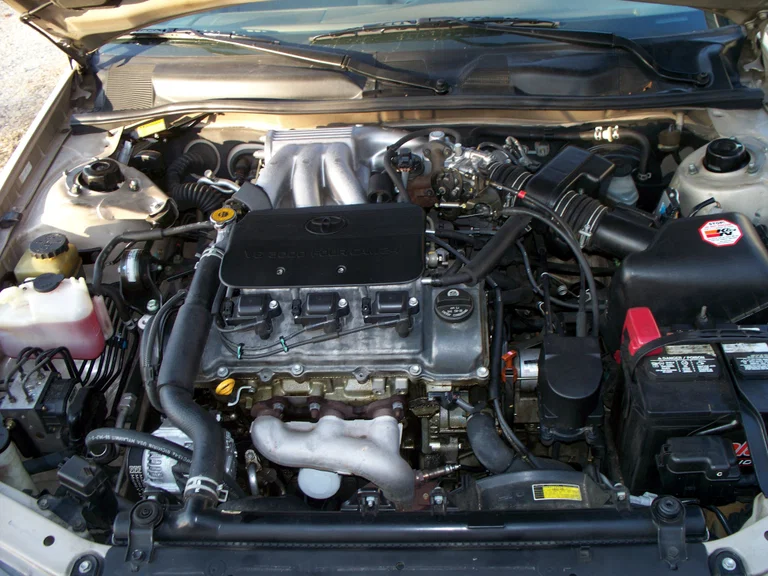

Featured photograph: 1999 Camry 1MZ-FE by Powerpeecee, public domain. Full-resolution original retained; displayed in responsive sizes.
